Multi-User MIMO(MU-MIMO)

REMORA Category: M

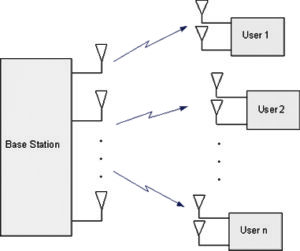

Multi-User MIMO (MU-MIMO) is an advanced wireless communication technique that involves multiple antennas at the transmitter and multiple antennas at multiple receivers. Unlike traditional single-user MIMO, where a single user communicates with a multi-antenna transmitter, MU-MIMO enables the simultaneous communication between a multi-antenna transmitter and multiple receivers, each of which may have one or multiple antennas.

Here’s how Multi-User MIMO works:

  1. Multiple Receivers: In a MU-MIMO scenario, there are multiple receivers (user devices), each with its own set of antennas.
  2. Transmitter with Multiple Antennas: The transmitter, which could be a Wi-Fi access point or a base station in cellular networks, has multiple antennas (often referred to as MIMO antennas). These antennas allow the transmitter to communicate with multiple users simultaneously.
  3. Precoding: To ensure that each receiver can distinguish its intended data stream from others, precoding techniques are used at the transmitter. Precoding involves manipulating the phase and amplitude of signals transmitted from the multiple antennas to create distinct signal streams for each receiver.
  4. Channel Knowledge: For effective MU-MIMO operation, the transmitter requires knowledge of the channel conditions between itself and each of the receivers. This information helps in performing precoding efficiently.
  5. Simultaneous Communication: With precoding and channel knowledge, the transmitter can simultaneously transmit independent data streams to multiple users, even if they are in close proximity.
  6. Increased Capacity: MU-MIMO significantly increases the network’s capacity by serving multiple users concurrently, reducing potential congestion, and improving overall network efficiency.

MU-MIMO technology is used in various wireless communication standards, including IEEE 802.11ac (Wi-Fi) and LTE (Long-Term Evolution) in cellular networks. It has become increasingly important as mobile devices and wireless networks continue to handle higher data loads and support more simultaneous connections. MU-MIMO enhances the performance and user experience in crowded network environments by allowing multiple users to receive data simultaneously.
